Power Supplies for Stepper Drives w/ Universal Input
Power Supplies for Stepper Drives
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $128.80 |
| 10-24 | $122.36 |
| 25-49 | $119.78 |
| 50-99 | $114.63 |
| 100-199 | $112.06 |
| 200+ | $109.48 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Universal Input Voltage Range from 85 to 265 Vac
- Built-In Active PFC Filter, PF>0.95, Conforms to EN61000-3-2
- Pending for Safety Approvals: CE, CCC, UL/CSA/EN60950
- EMI: Conform to EN55011-B, EN55022-B, FCC-B
- EMS: Conform to EN61000-4- 2,3,4,5,6,8,11
- LED Power Good Indicator
- Peak Current for Motor Application
- 100% Full Load Burn-In Test, High Performance, High Reliability.
- Compact Size, 15% Smaller than Conventional Products.
Edit Options
View all modelsNot all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Current Rating
Supply Voltage
Features
Product Specs

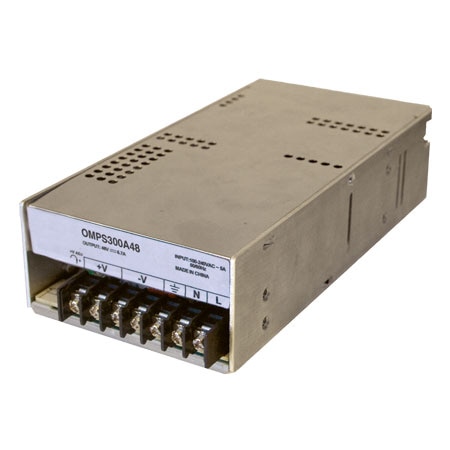

Most stepper drives require a separate DC power supply for operation. Omegamation offers two power supplies that are matched for use with our stepper drive selection: the OMPS150A24 and the OMPS300A48.
Both power supplies are switched-mode, regulated DC power supplies with active PFC filters. The OMPS150A24 is 24 Vdc, 6.3 A (150 W) while the OMPS300A48 is 48 Vdc, 6.7 A (300 W).
Protect your power supply from motor regeneration with the OMRC-050 regen clamp... see "Specs" above for details.
Both power supplies are switched-mode, regulated DC power supplies with active PFC filters. The OMPS150A24 is 24 Vdc, 6.3 A (150 W) while the OMPS300A48 is 48 Vdc, 6.7 A (300 W).
Protect your power supply from motor regeneration with the OMRC-050 regen clamp... see "Specs" above for details.
OMPS150A24 SPECIFICATIONS Nominal Output Voltage: 24V Maximum Output Current: 6.3 A Peak Output Current: 9.5 A Maximum Output Power: 151.2 W Efficiency (Typical) (115/230 Vac)1: 82/85% Input Voltage Range: 85 to 265 Vac (47 to 63 Hz) or 120 to 370 Vdc Input Current (Typical) (115/230 Vac)1: 1.8/0.9 A Inrush Current (Typical): 16 A at 115 Vac, 32 A at 230 Vac, Ta = 25°C (77°F), cold start Harmonic Current: Compliance to EN61000-3-2 Power Factor (Typical) (115/230 Vac)1: 0.99/0.95 Output Voltage Range: 21.6 to 26.4V Ripple and Noise (115/230 Vac)1, 2: 150 mV Line Regulation2: 96 mV Load Regulation2: 120 mV Temperature Coefficient: Less than 0.02 %/°C Over Current Protection3: 6.6/9.7 A Over Voltage Protection4: 27.6 to 32.4V Hold-Up Time (Typical) (115/230 Vac)1: 20 ms Leakage Current: 0.75 mA max, 0.25 mA (Typical) at 115 Vac, 0.5 mA (Typical) at 230 Vac Series Operation: Possible Remote ON/OFF Control: Option, CN3: 4 to 10V, Power ON; 0 to 0.8V, Power OFF Operating Temperature: -10 to 70°C (14 to 158°F) Operating Humidity: 20 to 90% RH (no dewdrop) Storage Temperature: -30 to 85°C (-22 to 185°F) Storage Humidity: 10 to 95% RH (no dewdrop) Cooling Method: Convection cooling/ forced air cooling Withstand Voltage: Input - Output: 3.0 KVac (20 mA) Input - FG: 2.0 KVac (20 mA) Output - FG: 500 Vac (100 mA) for 1 min Isolation Resistance: More than 100MΩ at Ta = 25°C (77°F) and 70%RH, Output - FG: 500 Vdc Vibration: At no operating, 10 to 55 Hz, 10 min 1 cycle 19.6m/s² constant, X, Y, Z, 1 hour each Safety: Pending, UL60950, CSA60950, EN60950 EMI5: Compliance to FCC-Class B, EN55011/EN55022-B,CISPR22 Class B EMS Immunity5: Compliance to EN61000-4-2, -3, -4, -5, -6, -8, -11 Weight (Typical): 620 g (21.87 oz) Dimensions: 50 x 99 x 199 mm (1.97 x 3.9 x 7.83") | OMPS300A48 SPECIFICATIONS Nominal Output Voltage: 48V Maximum Output Current: 6.7 A Peak Output Current: 8.7 A Maximum Output Power: 321.6 W Efficiency (Typical) (115/230 Vac)1: 80/85% Input Voltage Range: 85 to 265 Vac (47 to 63 Hz) or 120 to 370 Vdc Input Current (Typical) (115/230 Vac)1: 3.6/1.8 A Inrush Current (Typical): 20 A at 115 Vac, 32 A at 230 Vac, Ta = 25°C (77°F), cold start Harmonic Current: Compliance to EN61000-3-2 Power Factor (Typical) (115/230 Vac)1: 0.99/0.95 Output Voltage Range: 43.2 to 52.8 Ripple and Noise (115/230 Vac)1, 2: 240 mV Line Regulation2: 96 mV Load Regulation2: 240 mV Temperature Coefficient: Less than 0.02%/°C Over Current Protection3: 7.0/8.9 A Over Voltage Protection4: 55.2 to 64.8 V Over Temperature Protection: Yes Hold-Up Time (Typical) (115/230 Vac)1: 20 ms Leakage Current: 0.75 mA max, 0.25 mA (typical) at 115 Vac, 0.5 mA (typical) at 230 Vac Series Operation: Yes Remote ON/OFF Control: Option, CN2: 4 to 10V, power ON; 0 to 0.8V, power OFF Remote Sensing: Option Operating Temperature: -10 to 65°C (14 to 149°F) Operating Humidity: 20 to 90% RH (no dewdrop) Storage Temperature: -30 to 85°C (-22 to 185°F) Storage Humidity: 10 to 95% RH (no dewdrop) Cooling Method: Forced air by blower fan Withstand Voltage: Input - Output: 3.0 KVac (20 mA) Input - FG: 2.0 KVac (20 mA) Output - FG: 500 Vac (100 mA) for 1 min Isolation Resistance: More than 100MΩ at Ta = 25°C (77°F) and 70% RH, Output - FG: 500 Vdc Vibration: At no operating, 10 to 55 Hz, 10 min 1 cycle 19.6 m/s² constant, X, Y, Z, 1 hour each Safety: Pending, UL60950, CSA60950, EN60950 EMI5: Compliance to FCC-Class B, EN55011/EN55022-B,CISPR22 Class B EMS Immunity5: Compliance to EN61000-4-2, -3, -4, -5, -6, -8, -11 Weight (Typical): 900 g (31.75 oz) Dimensions: 50 x 115 x 215 mm (1.97 x 4.53 x 8.46") | |
| 1 At maximum output power, nominal input voltage, Ta = 25°C (77°F). 2 Ripple and noise measured at bandwidth of 20 MHz by using a 12" twisted pair-wire terminated with 0.1uF and 47uF parallel capacitors. 3 Constant current limit with automatic recovery. Avoid operating at overload or dead short for more than 60 seconds. 4 Shutdown output voltage, manual reset. Re-power on to recover. 5 This power supply is considered a component to be installed in final equipment which should be re-confirmed to meet EMC directives. | ||
