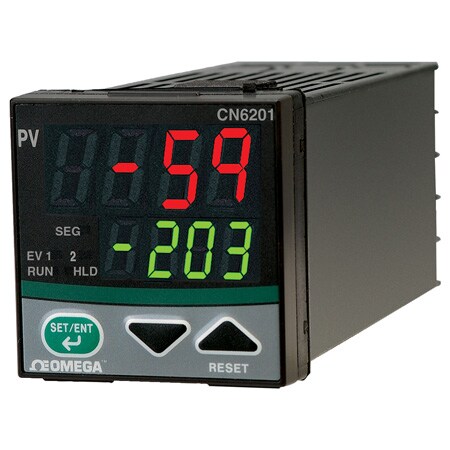

1/16 DIN Ramp/Soak Temperature/Process Controllers

Item# CN6201-DC

1/16 DIN Ramp/Soak Temperature/Process Controllers 1/16 DIN Ramp/Soak Temperature/Process Controllers

Description

The CN6201 Series temperaturecontrollers have 1 program patternconsisting of 16 segments that caneasily be set and operated. The2 event outputs are provided asstandard. External contact input,RS485 communication andretransmission outputs are optional.The universal input supportsthermocouple, RTD and voltage inputtypes and the 3 types of outputs. Thefront panel has a splash-proof anddust-proof design (IP65).
CN6201-DC
  • Dual Display
  • Universal Input
  • Single 16-Segment Ramp/Soak Program
  • RS485 Communications (Optional)
  • Alarms (Optional)
  • Retransmission Output (Optional)
Measurement Type
Input Type
Number of Inputs
DIN Size
Display Type
Number of Outputs
Output Type
Max Sampling Rate
Supply Voltage Type
Supply Voltage
Communincations
Accuracy Rating
Other Features
See All Options
Quantity Price each
1-9 $414.75
10-24 $394.01
25-49 $373.28
50-99 $352.54
100-499 $331.80
500+ $311.06

In stock

Lead Time ( If not in Stock): 9 weeks

Product Specs

  • Communication Protocols (Sku Variant) RS-485 MODBUS/Ladder/PC-link protocol
    RS-485 MODBUS/Ladder/PC-link protocol
  • Analog Current Input Ranges 4 to 20 mA
    4 to 20 mA
  • Analog Input Accuracy Thermocouple: ±2°C ±1digit RTD: ±1°C ±1digit Voltage (mV
    Thermocouple: ±2°C ±1digit RTD: ±1°C ±1digit Voltage (mV
  • Control/Alarm Outputs, Maximum 2
    2
  • Control/Alarm Outputs, Standard 1 point
    1 point
  • Control Algorithms Autotune PID Manual Control Mode
    Autotune PID Manual Control Mode
  • Display Color Red/Green
    Red/Green
  • Measurement Type Temperature
    Temperature
  • Number of Display Lines (Sku Variant) 2
    2
  • Other Features (Sku Variant) Recorder Retransmission Low Voltage Power
    Recorder Retransmission Low Voltage Power
  • RTD Connection 2
    2
  • Remote Setpoint Capability Yes
    Yes
  • RTD Curves Supported 385
    385
  • RTD Types Supported RTD( 2
    RTD( 2
  • Supply Frequency 50/60 Hz
    50/60 Hz
  • Sampling Rate 500 ms
    500 ms
  • Thermocouple Type K
    K

Description

The CN6201 Series temperaturecontrollers have 1 program patternconsisting of 16 segments that caneasily be set and operated. The2 event outputs are provided asstandard. External contact input,RS485 communication andretransmission outputs are optional.The universal input supportsthermocouple, RTD and voltage inputtypes and the 3 types of outputs. Thefront panel has a splash-proof anddust-proof design (IP65).
