7 inch TFT Display, 6 T/C Inputs Paperless Recorder

Item# RDA760-TC

0  In Stock

7 inch TFT Display, 6 T/C Inputs Paperless Recorder RDA760-TC RDA760-TC
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getAggregateRating, 0ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • This product is temporarily unavailable. For a potential replacement, please see RD8250 or contact sales.
  • Color TFT Touch Screen Display: 5'' or 7''
  • 2, 4, or 6 Isolated Inputs for Thermocouple or RTD models
  • 2 Internal Alarm setpoints per channel
  • Maximum sample rate of 1 Hz
  • Exportable data via USB Drive
  • Low power consumption (≤5W)

Edit Options

View all models

Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Number of Inputs
Measurement Type
Add Form Factor
Add Display Size
Add Max Sample Rate
Add Number of Alarms Relays
Add Triggers
Add Communication Protocol
Add Power
Change from Options Additional Features


Product Specs

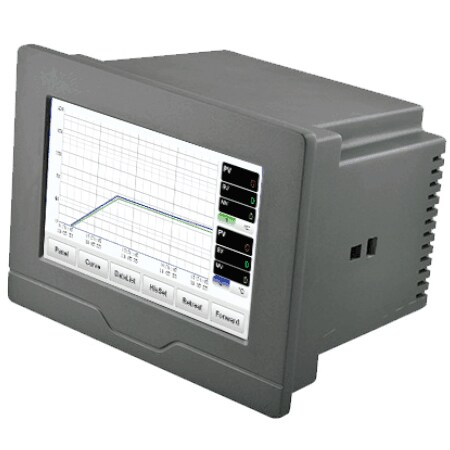

The RDA Paperless Multi-Channel Touch Screen Paperless Thermocouple or RTD Recorder Series is a value priced large format touch screen datalogger that integrates measurement, display, alarm, and datalogging into one slim instrument. The RDA Series is available in both 5'' and 7'' display models. The instrument is easy to install and requires no external HMI. Depending on the model, the RDA Series can support 2, 4 or up to 6 input channels with either thermocouple or RTD input type with 0.2% FS measuring accuracy. Each channel can have independent input specification, with square-root, multiplication, addition and subtraction. All channels are equipped with digital adjustment and filtering functions. The RDA Series provides a real time trend records via trend graph or bar graph. History and alarm records can be reviewed in the logger itself with 150MB of internal storage or exported to external USB storage device. The RDA-740 and RDA-760 models have a slim installation depth of 40mm of for use where installation space is limited.
RDA Technical Specification

Omega model RDA-520-RTD RDA-520-TC RDA-740-RTD RDA-740-TC RDA-760-RTD RDA-760-TC
Dimensions
Diagonal Display Size 5 inches (127mm) 7 inches (177.8mm)
External Size 5.71 x 4.13 x 3.94 inches (145 x 105 x 100mm) (Width*Height*Depth) 7.99 x 6.10 x 1.57 inches (203 x 155 x 40mm) (Width*Height*Depth)
Installation Opening Size 5.31 x 3.78 x 3.78 inches (135 x 96 x 96mm) (Width*Height*Depth) 7.56 x 5.47 inches (192 x 139mm) (Width*Height)

Display
Color TFT True Color
Resolution 800*480
Backlit Long-life LED
Input Method Screen  Touching
Touch Screen Four-wire Resistive

Memory
Storage 150MB
Recording Interval (seconds) 1, 2 3, 4, etc.
User Defined

Instrument Input
Input Type Two 2-wire RTD Pt100, Cu50, 0-80ohm, 0-400ohm, etc (Two inputs share one common port) Two thermocouples K, S, R, E, J, T, B, N, WRe5-WRe26 Four 2-wire RTD Pt100, Cu50, 0-80ohm, 0-400ohm, etc (Every two inputs share one common port) Four thermocouples K, S, R, E, J, T, B, N, WRe5-WRe26 Six 2-wire RTD Pt100, Cu50, 0-80ohm, 0-400ohm, etc (Every Two inputs share one common port) Six thermocouples K, S, R, E, J, T, B, N, WRe5-WRe26
Measurement Accuracy ±0.2%FS ±1 digit / ±0.3%FS ±1 digit (only for Cu50) ±0.2% FS ± 1 digit. Internal cold junction compensation (CJC) will require an additional 1℃ CJC error to be taken into consideration. The stated accuracy for type B thermocouple is only guaranteed between 600~ 1800℃ (+1112 ~ +3272°F). ±0.2%FS ±1 digit / ±0.3%FS ±1 digit (only for Cu50) ±0.2% FS ± 1 digit. Internal cold junction compensation (CJC) will require an additional 1℃ CJC error to be taken into consideration. The stated accuracy for type B thermocouple is only guaranteed between 600~ 1800℃ (+1112 ~ +3272°F). ±0.2%FS ±1 digit / ±0.3%FS ±1 digit (only for Cu50) ±0.2% FS ± 1 digit. Internal cold junction compensation (CJC) will require an additional 1℃ CJC error to be taken into consideration. The stated accuracy for type B thermocouple is only guaranteed between 600~ 1800℃ (+1112 ~ +3272°F).
Response Time   ≤1.5 seconds  (digital filter parameter dL is set as 0 or 1)
Temperature Drift ≤0.01%FS/℃  (Typical 50ppm/℃)
Measuring Range Pt100:
-200~+800℃
(-328~+1472°F) ,
Cu50:
-50~+150℃
(-58~+302°F)
K
-50 ~ +1300℃
(-58 ~ +2372°F),
S
-50 ~ +1700℃
(-58 ~ 3092°F) ,
R
-50 ~ +1700℃
(-58 ~ 3092°F,
T
-200 ~ + 350℃
(-328 ~ +662°F),
E
0 ~ +800℃
(+32 ~ 1472°F) ,
J
0 ~ +1000℃
(+32 ~ 1832°F),
B
+200 ~ +1800℃
(+392 ~ 3272°F),
N
0~ +1300℃
(+32 ~ 2372°F),
WRe3~WRe5
0 ~ +2300℃
(+32 ~ +4172°F),
WRe5~WRe26
0~+2300℃
(+32 ~ +4172°F)
Pt100:
-200 ~ +800℃
(-328~ +1472°F) ,
Cu50:
-50~ +150℃
(-58 ~ +302°F)
K
-50 ~ +1300℃
(-58 ~ +2372°F),
S
-50 ~ +1700℃
(-58 ~ 3092°F) ,
R
-50 ~ +1700℃
(-58 ~ 3092°F,
T
-200 ~ + 350℃
(-328 ~ +662°F),
E
0 ~ +800℃
(+32 ~ 1472°F) ,
J
0 ~ +1000℃
(+32 ~ 1832°F),
B
+200 ~ +1800℃
(+392 ~ 3272°F),
N
0~ +1300℃
(+32 ~ 2372°F),
WRe3~WRe5
0 ~ +2300℃
(+32 ~ +4172°F),
WRe5~WRe26
0~+2300℃
(+32 ~ +4172°F)
Pt100:
-200 ~ +800℃
(-328~ +1472°F) ,
Cu50:
-50~ +150℃
(-58 ~ +302°F)
K
-50 ~ +1300℃
(-58 ~ +2372°F),
S
-50 ~ +1700℃
(-58 ~ 3092°F) ,
R
-50 ~ +1700℃
(-58 ~ 3092°F,
T
-200 ~ + 350℃
(-328 ~ +662°F),
E
0 ~ +800℃
(+32 ~ 1472°F) ,
J
0 ~ +1000℃
(+32 ~ 1832°F),
B
+200 ~ +1800℃
(+392 ~ 3272°F),
N
0~ +1300℃
(+32 ~ 2372°F),
WRe3~WRe5
0 ~ +2300℃
(+32 ~ +4172°F),
WRe5~WRe26
0~+2300℃
(+32 ~ +4172°F)

General Specification
Electromagnetic Compatibility (EMC) ±4KV/5KHz according to IEC61000-4-4 (Electrical Fast Transient); 4KV
according to IEC61000-4-5 (Electrical Surge).
Isolation Withstanding voltage Among power, relay contact or signal terminals ≥2300VDC. Among isolated
electroweak terminals ≥600V
Power Supply 100~240VAC, -15%, +10% / 50~60Hz
Power Consumption   ≤5W
Operating Environment Temperature -10~+60℃ (+14 ~ +140°F) Humidity ≤ 90%RH
Storage Temperature -20 ~ +80℃ (-4 ~ +176°F)
Unit Weight 1.21 lbs (0.55kg) 1.54 lbs (0.7kg)
Cooling Method Natural Air Cooling
