Planar Beam Load Cell, See LCPB

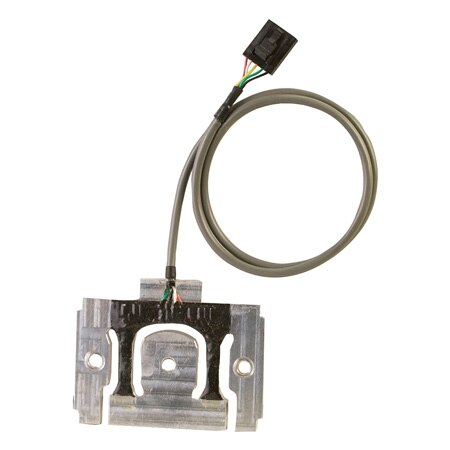

PLANAR BEAM LOAD CELL

$164.31

Item# LCPW-37.5

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $164.31
5-9 $156.09
10-24 $152.81
25-49 $146.24
50-99 $142.95
100+ $139.66

In stock

Lead Time (If not in stock): 21 weeks
PLANAR BEAM LOAD CELL LCPW-37.5 LCPW-37.5
  • All Aluminum Construction
  • Low Profile Design
  • Low Cost for OEM Applications
  • IP67 Environmental Rating
  • 7.5, 15, 20, 37.5, 75 and 100 kg Ranges
  • ROHS Compliant

LCPW-37.5 Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Weight Capacity
Measurement Units
Force direction
Linearity
Electrical Output (nominal)
Width
Length
Connection Type
Cable Length


  • Hysteresis ± 0.02% FS
  • Input Resistance 1180 ± 50 O
  • Linearity ± 0.02% FS
  • Load Cell Material Aluminum
  • Maximum Ambient Temperature 65 {C} (150 {F})
  • Maximum Compensation Temperature 40 {C} (104 {F})
  • Measurement Type Load
  • Minimum Compensation Temperature -10 {C} (14 {F})
  • Output Voltage 0.9 mV/V ± 0.1%
  • Safe Overload 300% of Capacity
  • Ultimate Overload 400% of Capacity
  • Temperature Effects Span: ± 0.04% FS/°C (0.022%/°F)
  • Zero Balance ± 5% FS
  • Style Planar Beam
OMEGA’s LCPW Series planar beam load cells are low cost OEM style, commonly used in a variety of weighing applications. They are normally installed in sets of 3 or 4 under a platform in conjunction with a summing network. It’s low profile construction is ideal for scale design where space is limited such as postal scales, airport baggage scales or retail checkout scales.
