Pre-Wired Strain Gages, Biaxial Tee Rosette

Shear, 6 mm Grid Length, 4 mm Grid Width

Item# KFG-5-350-D16-11L3M3S

Shear, 6 mm Grid Length, 4 mm Grid Width KFG-5-350-D16-11L3M3S KFG-5-350-D16-11L3M3S
  • Coveniently Priced per Pack of 10
  • Pre-Wired Strain Gages for Easy Installation
  • Perpendicular Grid for Axial Strain
  • 0°/90° Tee-Rosettes with Stacked Grids
  • Fully Encapsulated for Added Durability
  • Pre-Wired Gages With Either
    Two 3-ft (1 m) Leads or
    Three 9-ft (3 m) Leads


Description

The KFG SERIES pre-wired strain gages are superseded by the KFH SERIES. Please see the KFH Series for complete details, or contact our Pressure department for more information..

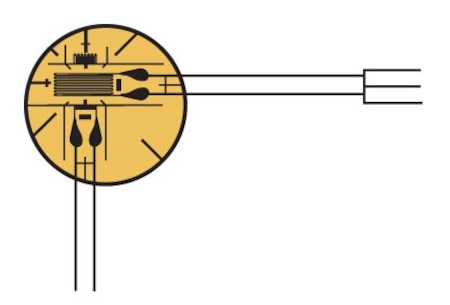

OMEGA's T-Rosettes have 2 measuring grids laid out in an X-Y Pattern.They are available in a variety of different models tocover most strain measurementapplications. The ruggedconstruction and flexibility make thesegeneral purpose strain gages suitable for static and dynamicmeasurement with a high degree ofaccuracy. The measuring grid isformed by etching Constantan foil,which is then completely sealed in acarrier medium composed ofpolyimide film. These strain gages are pre-wired with either two 3-ft (1 m) leads or three 9-ft (3 m) leads. Standard strain gages have temperature coefficients matched to steel.
