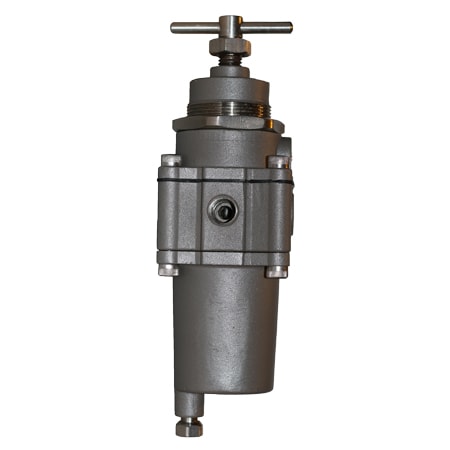

Pressure Regulators for Corrosive Media and Harsh Environments
0 to 100 psig
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $479.87 |
| 10-24 | $455.88 |
| 25-49 | $446.28 |
| 50-99 | $427.08 |
| 100-199 | $417.49 |
| 200+ | $407.89 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- All 316 SS Construction
- High Flow Capacity
- Tapped Exhaust Port for Remote Venting
- Minimal Air Consumption
- 25 Micron Filter
PRG352A-100 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Pressure Range
Pressure Port Size
Maximum Inlet Pressure
Pressure Port Type
Media Type
Features
- Air Consumption 4 scfh (0.1 m3/hr) max
- Exhaust Capacity 1.0 scfm (1.7 m3/hr) (outlet pressure 10 psig above set point)
- Filter 25 micron
- Materials Meets NACE #MR-0175 material requirement for sulfide stress cracking 316L stainless steel: housings 316 stainless steel: filter, range spring, trim Inconel: valve spring Fluorocarbon: diaphragm, seals Silicone: diaphragm, seals (low temperature option)
- Maximum Supply Pressure 290 psig (20.0 bar)
- Operating Temperature -20° to +185° F (-29° C to +85° C)
- Porting Inlet/Outlet: 1/4 NPT or 1/2 NPT Gauge (2): 1/4 NPT Exhaust: 1/8 NPT
- Weight PRG352A: 2.9 lbs. (1.3 kg) ; PRG354A: 2.2 lbs. (1.0 kg)
The PRG350A series of stainless steel filter regulators are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon elastomers make the PRG350A compatible with sour gas and adaptable to off shore environments.
SPECIFICATIONS
Exhaust Capacity: 1.0 scfm (1.7 m3/hr) (outlet pressure 10 psig above set point)
Air Consumption: 4 scfh (0.1 m3/hr) max
Maximum Supply Pressure: 290 psig (20.0 bar)
Operating Temperatures: -20° to +185°F (-29°C to +85°C)
Filter: 25 micron
Porting:
Inlet/Outlet: 1/4 NPT or 1/2 NPT
Gauge (2): 1/4 NPT
Exhaust: 1/8 NPT
Materials: Meets NACE #MR-0175 material requirement for sulfide stress cracking 316L stainless steel: housings 316 stainless steel: filter, range spring, trim Inconel: valve spring
Fluorocarbon: diaphragm, seals Silicone: diaphragm, seals (low temperature option)
Body, Bonnet, Filter: AISI 316 stainless steel
Diaphragm Seals: Fluorocarbon
Range Spring, Pintle Spring: Inconel
Weight:
PRG352A: 2.9 lbs. (1.3 kg)
PRG354A: 2.2 lbs. (1.0 kg)
