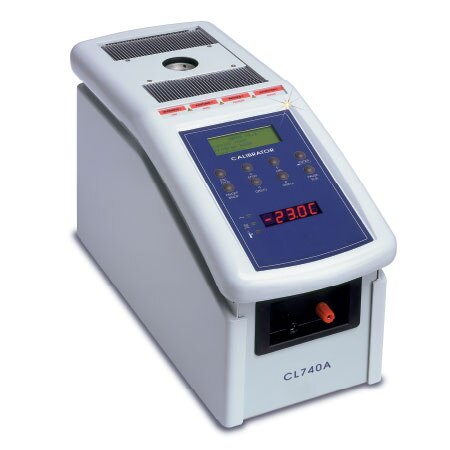

Dry Block Calibrators
- Features RS232 Communications and Software for Bi-directional Communication
- CE Marked
- Housed in a Rugged Metal Case for Field Use
- RS-232 Computer Interface for Data and Program Transfer or Real Time Control
SPECIFICATIONS
Inputs and Outputs
Serial Interface Port (RS232): Bi-directional, 9600 Baud
Connector: 9-way, D-type
Hardware: No handshaking
Switch Test Sockets: 4 mm
Voltage: 120 V (230 V optional)
Hz: 50/60
Watts: 400
Measuring Zone: 0 to 50 mm (0 to 1.97") from base of well
Display Resolution: 0.1°C or 0.1°F
Programmable Ramp Rate (°C/min): 0.18 to 77
Communication Port, 9-Way D-Type: Full, bi-directional RS232 Environmental Specifications
Ambient Temperature: 10 to 30°C (50 to 86°F)
Humidity: Up to 95% non-condensing
Inputs and Outputs
Serial Interface Port (RS232): Bi-directional, 9600 Baud
Connector: 9-way, D-type
Hardware: No handshaking
Switch Test Sockets: 4 mm
Voltage: 120 V (230 V optional)
Hz: 50/60
Watts: 400
Measuring Zone: 0 to 50 mm (0 to 1.97") from base of well
Display Resolution: 0.1°C or 0.1°F
Programmable Ramp Rate (°C/min): 0.18 to 77
Communication Port, 9-Way D-Type: Full, bi-directional RS232 Environmental Specifications
Ambient Temperature: 10 to 30°C (50 to 86°F)
Humidity: Up to 95% non-condensing
