X-Series - Multi Channel Thermocouple Loggers

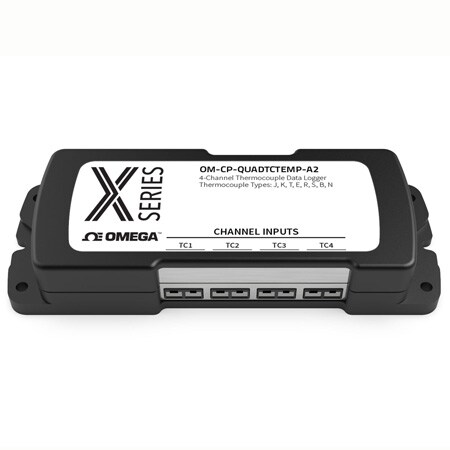

X-Series - 4 Channel Thermocouple Logger

$687.50

Item# OM-CP-QUADTCTEMP-A2

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $687.50
5-9 $673.75
10-24 $660.00
25-49 $632.50
50-99 $625.63
100+ $618.75

In stock

Lead Time ( If not in Stock): 2 weeks

X-Series - 4 Channel Thermocouple Logger OM-CP-QUADTCTEMP-A2 OM-CP-QUADTCTEMP-A2
  • Up to 4 Hz Reading Rate
  • Open Channel Detection
  • Configurable Channel Names
  • Accepts Thermocouple Types J, K, T, E, R, S, B, N
  • External Power or User Replaceable Battery
  • Pushbutton or Programmable Start
  • NIST Traceable Calibration Certificate Included
  • Simple Setup and Installation
  • Minimal Long-Term Maintenance
  • Long-Term Field Deployment
5 Year Warranty

Edit Options

View all models

Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Measurement Type
Number of Measurements
Input Type
Maximum Samples
Display
Power
Data Interface
Max Sampling Rate
Additional Feature


Product Specs

The new OM-CP-TCTempX Series consists of 4, 8, 12 and 16-channel thermocouple data loggers with a reading rate of up to 4 Hz. X-Series devices ship with a standard USB-A to Micro USB cable for use with free OM-CP PC based software. The X-series has a high memory capacity and increased download speed compared to previous generations of product.

In addition, the OM-CP-TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data. For easy identification, each channel can be named with up to a ten digit title. To maximize memory capacity, users can enable or disable channels.

The OM-CP-TCTempX Series are ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged. After the monitoring cycle is complete, data can be downloaded for analysis.

Rated 5 out of 5 by from The very best It is so easy to install and use, i’d lo e the software
Date published: 2020-11-23
Rated 5 out of 5 by from Rugged Stand-Alone TC Data Logger Rugged piece of equipment that allows stand-alone logging of thermocouple data in multiple environments. Very easy to set up with the free software that is found on the OMEGA website. Retrieving the data is even easier. Just be sure to charge the battery before logging, and select the correct sample rate to avoid running out of memory. Great piece of equipment, we will be buying more in the near future.
Date published: 2020-10-15
  • y_2021, m_9, d_25, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_OM-CP-QUADTCTEMP-A2, prod, sort_[SortEntry(order=HELPFULNESS, direction=DESCENDING), SortEntry(order=POSITIVE_FEEDBACK, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_omega
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getReviews, 0ms
  • REVIEWS, PRODUCT

Can I Use it in an oven profiler just like OM-CP-QUADTEMP-A?

Asked by: Eduardo Leandro
Thank you for your question. Please e-mail your question to DAS@OMEGA.COM along with the s/n of the OM-CP-QUADTEMP-A logger that was enclosed in the OM-CP-QUADTHERMOVAULT.
Answered by: Raptor
Date published: 2020-10-14

Can I read temperatures in real time, using just serial or modbus or something? (without using the software)

Asked by: grov
Hello, thank you for your question. Unfortunately, this logger uses a proprietary software and protocols are not available. The software does include real time monitoring if this is something you would like to consider.
Answered by: DA Engineer
Date published: 2021-05-05

Is it possible to observe the temperatures in real time by leaving a computer connected with the USB cable and viewing via the software?

Asked by: Jerry B
Thank you for your question. Even though the primary function is a stand-alone logger you can view the data real-time on the PC but this will drain the battery and you will have to change more frequently.
Answered by: Cheetah
Date published: 2020-09-25

Is it possible to poll each channel via ascii command whenever I want to record the data to a 3rd party software?

Asked by: make or break decision
Thank you for your question. Unfortunately, there is no serial protocol available to poll logger just provided software.
Answered by: Raptor
Date published: 2020-12-17

Thank you for your question. Even though the primary function is a stand-alone logger you can view the data real-time on the PC but this will drain the battery and you will have to change more frequently.

Asked by: Raptor
Thank you for your question. Even though the primary function is a stand-alone logger you can view the data real-time on the PC but this will drain the battery and you will have to change more frequently.
Answered by: Application Engineer JB
Date published: 2020-09-22

will this system accept integrated circuit temp probes (OM-2628-C1)?

Asked by: Anonymous
Thank you for your question. The logger will only accept thermocouple sensors and not the OM-2628-C1.
Answered by: Raptor
Date published: 2020-12-16

Does the data logger come with the software or do you have to purchase that separately?

Asked by: kourt
Thank you for your question. The software is a free download from the product page. Just scroll down under Product Specs for software link.
Answered by: Application Engineer PV
Date published: 2021-09-16

Does the OM-CP series software for the logger support Windows 10?

Asked by: ZachEE
Thank you for your question. Yes, software supports Windows 10.
Answered by: Application Engineer PV
Date published: 2021-08-31
