Circuit Board Mountable Thermocouple Connectors

Circuit Board Thermocouple Connectors, Miniature Size



Volume discounts available
Volume Discount Schedule
Quantity Price each
1-9 $34.18
10-49 $32.47
50-99 $30.76
100-999 $29.05
1000-4999 $27.34
5000+ $25.64

In stock

Lead Time ( If not in Stock): 19 weeks

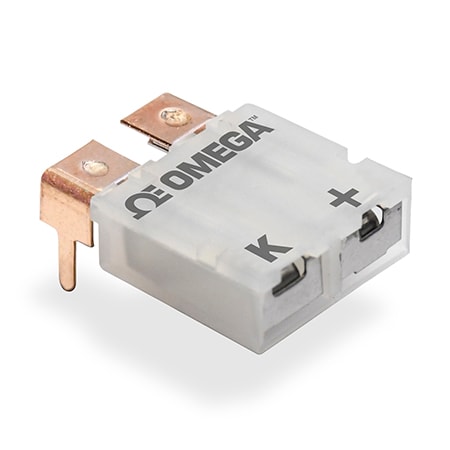

Circuit Board Thermocouple Connectors, Miniature Size PCC-SMP-UCB-5-R PCC-SMP-UCB-5-R
  • Due to very high demand lead times may be adjusted, please consult sales for inquiries regarding lead time adjustments.
  • Please consider our PCC-SMD connectors which are in stock and have shorter lead time
  • New printing on connectors, please see description for details
  • For OEM Uses
  • Attaches Directly to Circuit Board, Mounting Clip with Each Connector
  • Perfect for Handheld Thermometers
  • J, K, T,E and U Calibrations
  • N Calibration Available in Mini-SMP Style Connector
  • Mount in Horizontal or Vertical Position
  • Optional Retainer Clip for TO-92 StyleTransistor Providing Cold Junctiion Compensation.
  • Accepts Either Standard or Miniature Size Male Connectors
  • Mounting Holes Shown in SPEC LINK Below
  • Thermocouple Connectors for PCB Board
  • Custom Units Designed for CE Compliance - Contact Sales

Edit Options

View all models

Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Sensing Type
Thermocouple Calibration Type
Connector Style
Temperature Range
Connector Gender
No. of Pins/Sockets
RoHS Compliant
Additional Features

Product Specs

The miniature connector is available in either horizontal or vertical mounting style. These connectors are also available with closed ends or transistor retainer clips. The PCC-SMP optional transistor retainer clip accepts TO-92 style transistors for cold junction temperature measurements at the transition from thermocouple alloy to copper wire.
