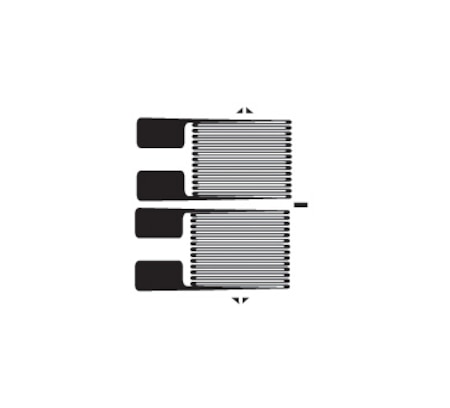

Double Strain Gages, 2 Measuring Grids

(0)

Item# SG-2/1000-DY11

Item# --

This item is no longer available to purchase. For questions contact sales

Double Strain Gages, 2 Measuring Grids SG-2/1000-DY11 SG-2/1000-DY11

Conveniently Priced per Pack of 5
Parallel Grid Dual Strin Gages for Bending Strain Applications
Strain Gages for Static and Dynamic Applications
Very Flexible, Mechanically Strong
Small Bending Radius
Broad Temperature Range
Encapsulated for Added Durability
Ribbon Leads, Solder Pads, or Wire Lead Connections
Clear Alignment Marks
Affix with Cold or Hot Curing Adhesives

View Full Specifications

Specs

Edit Model Options

OMEGA™ parallel dual grid strain gages are available in a variety of different models to cover most bending strain measurement applications. The rugged construction and flexibility make these general purpose strain gages suitable for static and dynamic measurement with a high degree of accuracy. The measuring grid is formed by etching Constantan foil, which is then completely sealed in a carrier medium composed of polyimide film. Either ribbon leads or solder pad termination style strain gages are available. Standard strain gages have temperature coefficients matched to either steel of aluminum.
