Excelon® Oil Removing Filters for Oil and Odors - Discontinued
| Quantity | Price each |
|---|---|
| 1-4 | $259.19 |
| 5-9 | $246.23 |
| 10-24 | $241.05 |
| 25-49 | $230.68 |
| 50-99 | $225.50 |
| 100+ | $220.31 |
Please add to cart to keep it or exit the configuration
- In-Line or Modular Installation
- Absorbing Type Activated Carbon Element Removes Oil Vapors and Most Hydrocarbon Odors
- Quick Release Bayonet Bowl
- Long Service Life of Filter Element
- Modular Installations with Excelon 72 and 74 Series Can be Made to Suit Particular Applications
Edit Options
View all modelsNot all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Product Specs
The F72C series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

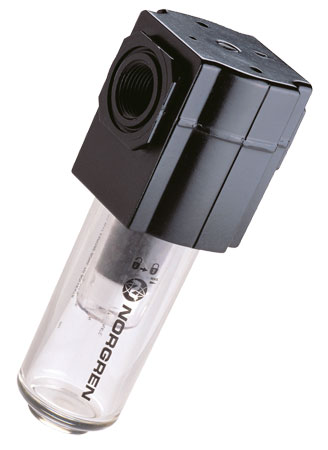

The H72V Series Air Line Oil Absorbing Filters are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular component, this oil vapor filter can quickly be attached to other filters, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.
Please note: in order to remove oil vapors this unit must be installed downstream of a coalescing oil filter of the type F72C Series.
SPECIFICATIONS
Fluid: Compressed air
Operating Pressure:
Transparent Bowl: 10 bar (150 psig)
Metal Bowl: 17 bar (250 psig)
Operating Temperature*:
Transparent Bowl: -20 to 50°C(0 to 125°F)
Metal Bowl: -20 to 65°C (0 to 150°F)
Air Quality: Within ISO 8573-1, class 1 **(oil content) when installed downstream of an oil removal filter.
Maximum Remaining Oil Content in Outlet Air: 0.003 ppm at 20°C (70°F)
| Materials (F72V Models) Body: Zinc Transparent Bowl: Polycarbonate Guard for Transparent Bowl: Zinc Metal Bowl: Zinc Element: Activated carbon and polycarbonate Elastomers: Nitrile | Materials (F74V Models) Body: Aluminum Transparent Bowl: Polycarbonate with steel bowl guard Metal Bowl: Aluminum Element: Activated carbon and aluminum Elastomers: Neoprene and nitrile *Air supply must be dry enough to avoid ice formation at temperatures below °C (35°F) |
