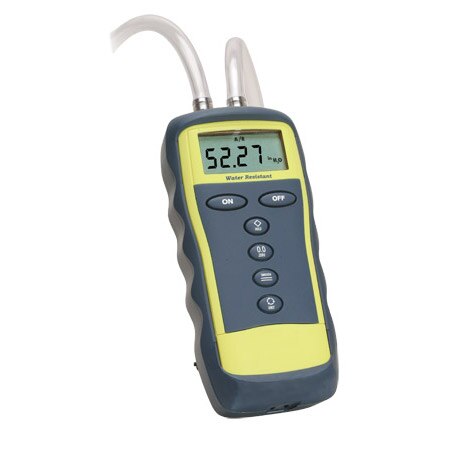

OMEGA’s HHP-90 is a rugged handheld instrument ideal for replacement of conventional U-tube manometers. It features high accuracy and resolution, fast response time, and selectable engineering units all at an economical price.
Manufactured from ABS plastic, this water-resistant instrument is supplied with a protective rubber boot to provide added protection. The case has a built in tilt stand and magnetic mounting for ease of use and the back lit LCD display allows easy viewing even in poor light conditions.
SPECIFICATIONS Accuracy: -10 to 50°C (14 to 122°F), ±0.2% of RDG + 0.2% FS + 1 LSD Operating Temp.: -10 to 50°C (14 to 122°F) ambient Compatible Media: Dry, non-corrosive gases Power: 2 AA batteries, included Battery Life: 200 hours with low battery indication on display Units of Measure: inH2O, mmH2O, mbar, PSI, kPa, inHg and mmHg Pressure Ports: tube connectors for 8 mm I.D. flexible tubing Dimensions: 155 x 67 x 40 mm (6.1 x 2.6 x 1.6') Weight: 180 grams (6.4 oz) without protective boot
