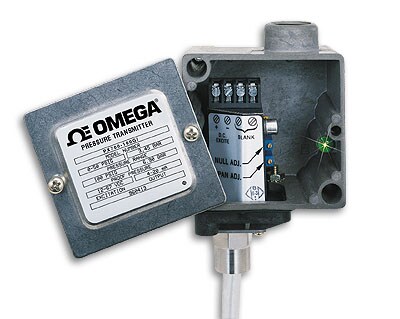

Terminal Box Style Current Output Pressure Sensors

DISCONTINUED - Terminal Box Style Current Output Pressure Sensors

$390.00

Item# PX700-100GI

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-4 $390.00
5-9 $370.50
10-24 $362.70
25-49 $347.10
50-99 $339.30
100+ $331.50

In stock

Lead Time ( If not in Stock): 99 weeks
Add to Project List
DISCONTINUED - Terminal Box Style Current Output Pressure Sensors PX700-100GI PX700-100GI
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getAggregateRating, 1ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

    Edit Options

    View all models

    Not all combinations are valid. Options compatible with previous selections will be in bold.

    *Highlighted options are not compatible. Please select a different combination.

    Maximum Pressure
    Pressure Type
    Accuracy Type
    Connection Type
    Connection Size
    Features


    Product Specs

    • Maximum Ambient Temperature 71 {C} (160 {F})
    • Gauge Material Stainless steel diaphragm
    • Long-Term Stability ±0.5% FS
    • Excitation 12 to 32 Vdc unregulated
    • Maximum Compensation Temperature 54 {C} (130 {F})
    • Measurement Units psig
    • Minimum Ambient Temperature -18 {C} (0 {F})
    • Minimum Compensation Temperature -1 {C} (30 {F})
    • Minimum Pressure 0 psi
    • Proof Pressure 200% or 13
    • Response time 1 ms
    • Sensor Life 100 million cycles
    • Total Thermal Effects ±1% FS max
    • Vibration 15 g
    • Zero Balance 4 mA ±1%
    • Wetted Materials 17-4 PH and 300 Series stainless steel
    Product Details

    • bvseo_sdk, java_sdk, bvseo-4.0.0
    • LOCAL, getReviews, 0ms
    • REVIEWS, PRODUCT
    • bvseo-msg: The resource to the URL or file is currently unavailable.;
    Manual (PDF)
    • bvseo_sdk, java_sdk, bvseo-4.0.0
    • LOCAL, getContent, 0ms
    • QUESTIONS, PRODUCT
    • bvseo-msg: The resource to the URL or file is currently unavailable.;
    Accessories
    RA-716-14M-SS
    7/16-20 UNF male to 1/4 NPT male adaptor
    $19.27
    0 In Stock
    RA-716-14F-SS
    7/16-20 UNF male to 1/4 NPT female adaptor
    $21.71
    0 In Stock
