Jack Panel Assemblies

OMEGA provides an infinite variety of panel sizes with thermocouple connectors, colors, materia...
[+]
19 Products found
thumbnail

19' Plain Panel Jacks    19' Jack Panels with Switch Cutout Read More

19MJP
Product Number Panel Cutout Shape Panel Thickness Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Number of Junction Box Positions Color Code Standard
19MJP2-40-U
$120.51
2  In Stock
No Panel Switch Cutout, No Meter Cutout
3.1 mm (1/8 in)
483 mm (19 in)
89 mm (3 1/2 in)
U
2
Miniature Connector
40 Jacks
ANSI
19MJP2-40-T-OSW
$131.84
2  In Stock
Panel Switch Cutout, No Meter Cutout
3.1 mm (1/8 in)
483 mm (19 in)
133 mm (5 1/4 in) 178 mm (7 in)
T
2
Miniature Connector
40 Jacks
ANSI
19MJP1-20-T
$74.16
2  In Stock
No Panel Switch Cutout, No Meter Cutout
3.1 mm (1/8 in)
483 mm (19 in)
89 mm (3 1/2 in)
T
1
Miniature Connector
20 Jacks
ANSI
19MJP1-30-BLANK
$28.33
Available
in 5 days
No Panel Switch Cutout, No Meter Cutout
3.1 mm (1/8 in)
483 mm (19 in)
89 mm (3 1/2 in)
Not Applicable
1
No Connectors Included
30 Jacks
Not Applicable
19MJP1-12-BLANK
$28.33
Available
in 5 days
No Panel Switch Cutout, No Meter Cutout
3.1 mm (1/8 in)
483 mm (19 in)
89 mm (3 1/2 in)
Not Applicable
1
No Connectors Included
12 Jacks
Not Applicable
  Load More Items from this family (105) ...
thumbnail

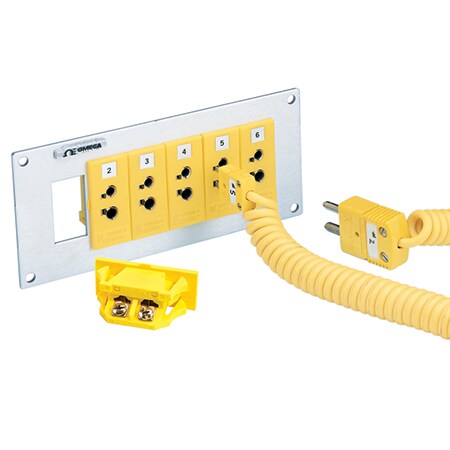

Mounting hardware has been eliminated in the SPJ-style panel jack by including retaining spring clips as part of the body design. A small tab and notch are provided to main... Read More

quickShip This product has variations available for quick shipping.

SPJ
Product Number Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
SPJ-K-F-ROHS
$5.06
92  In Stock
30.4 mm (1.20 in)
16.3 mm (0.64 in)
K
1
Female Pin Connector
ROHS Compliant
6
ANSI
SPJ-K-F
$5.06
200  In Stock
30.4 mm (1.20 in)
16.3 mm (0.64 in)
K
1
Female Pin Connector
Standard
6
ANSI
SPJ-T-F
$5.06
1280  In Stock
30.4 mm (1.20 in)
16.3 mm (0.64 in)
T
1
Female Pin Connector
Standard
6
ANSI
SPJ-N-F
$5.06
81  In Stock
30.4 mm (1.20 in)
16.3 mm (0.64 in)
N
1
Female Pin Connector
Standard
6
ANSI
SPJ-R/S-F-ROHS
$5.06
603  In Stock
30.4 mm (1.20 in)
16.3 mm (0.64 in)
R/S
1
Female Pin Connector
ROHS Compliant
6
ANSI
  Load More Items from this family (33) ...
thumbnail

EASY INSTALLATION No special tooling is required for installation. Just drill or punch a round hole in your panel and tighten the supplied nut. Ideal for single-circu... Read More

quickShip This product has variations available for quick shipping.

RMJ-RSJ
Product Number Thermocouple Type Number of Connector Rows Connector Type Face Type Features Number of Junction Box Positions Color Code Standard
RMJ-J-R
$2.36
240  In Stock
J
1
Miniature Size Male Connector
Round
Standard
6
ANSI
RMJ-K-R
$2.36
1376  In Stock
K
1
Miniature Size Male Connector
Round
Standard
6
ANSI
RMJ-T-R
$2.36
4030  In Stock
T
1
Miniature Size Male Connector
Round
Standard
6
ANSI
RSJ-T-R
$2.66
76  In Stock
T
1
Standard Size Male Connector
Round
Standard
6
ANSI
RSJ-NI-R
$2.97
69  In Stock
N
1
Standard Size Male Connector
Round
Standard
6
IEC
  Load More Items from this family (53) ...
thumbnail

OMEGA™ Miniature Jack Panels are fabricated using miniature panel jacks and snap strip assemblies in a clear anodized aluminum plate. Some prices for OMEGA’s panels with miniature... Read More

quickShip This product has variations available for quick shipping.

MJP
Product Number Panel Thickness Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
MJP1-12-T
$49.32
13  In Stock
2.3 mm (0.09 in)
207 mm L (8.13 in)
45 mm (1 3/4 in)
T
1
Miniature Male Connector
Standard
12 circuits
ANSI
MJP1-06-K
$37.31
23  In Stock
2.3 mm (0.09 in)
111 mm (4.38 in)
45 mm (1 3/4 in)
K
1
Miniature Male Connector
Standard
6 circuits
ANSI
MJP1-06-T
$37.31
10  In Stock
2.3 mm (0.09 in)
111 mm (4.38 in)
45 mm (1 3/4 in)
T
1
Miniature Male Connector
Standard
6 circuits
ANSI
MJP2-12-K
$49.32
11  In Stock
2.3 mm (0.09 in)
111 mm (4.38 in)
83 mm (3 1/4 in)
K
2
Miniature Male Connector
Standard
12 circuits
ANSI
MJP2-12-T
$49.32
13  In Stock
2.3 mm (0.09 in)
111 mm (4.38 in)
83 mm (3 1/4 in)
T
2
Miniature Male Connector
Standard
12 circuits
ANSI
  Load More Items from this family (116) ...
thumbnail

The OMEGA™ Bezel Strip system mounts in a single rectangular cutout in your panel. The textured black finish accents the ANSI color coded connectors. Pre-wired SMP connectors can ... Read More

quickShip This product has variations available for quick shipping.

MBS
Product Number Panel Height Number of Connector Rows Connector Type Number of Junction Box Positions
MBS-08
$13.46
200  In Stock
2.54 cm (1 in)
1
SMP Miniature Connector
8 Jacks
MBS-07
$13.46
9  In Stock
2.54 cm (1 in)
1
SMP Miniature Connector
7 Jacks
MBS-12
$14.49
80  In Stock
2.54 cm (1 in)
1
SMP Miniature Connector
12 Jacks
MBS-03
$10.35
2726  In Stock
2.54 cm (1 in)
1
SMP Miniature Connector
3 Jacks
MBS-02
$9.32
117  In Stock
2.54 cm (1 in)
1
SMP Miniature Connector
2 Jacks
  Load More Items from this family (5) ...
thumbnail

The Snap Strip is an alternate mounting method when two or more miniature panel jacks are to be installed in a row. Only a single rectangular opening is required to mount a... Read More

quickShip This product has variations available for quick shipping.

MSS-Series
Product Number Panel Thickness Panel Length Panel Height Number of Connector Rows Connector Type Number of Junction Box Positions Color Code Standard
MSS-08
$4.56
494  In Stock
0.090 in
110.5 mm (4.35 in)
20.1 mm (0.79 in)
1
MPJ connector
8
0
MSS-06
$3.47
160  In Stock
0.090 in
82.0 mm (3.23 in)
20.1 mm (0.79 in)
1
MPJ connector
6
0
MSS-02
$1.14
70  In Stock
0.090 in
24.9 mm (0.98 in)
20.1 mm (0.79 in)
1
MPJ connector
2
0
MSS-10
$5.70
146  In Stock
0.090 in
139.2 mm (5.48 in)
20.1 mm (0.79 in)
1
MPJ connector
10
0
MSS-04
$2.28
311  In Stock
0.090 in
53.3 mm (2.10 in)
20.1 mm (0.79 in)
1
MPJ connector
4
0
  Load More Items from this family (1) ...
thumbnail

The MPJ Miniature Panel Jack requires less than half of the panel area required by the Standard Size connectors. A simple push-on clip is all that is required to retain the connec... Read More

quickShip This product has variations available for quick shipping.

MPJ
Product Number Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
MPJ-T-F
$2.66
5740  In Stock
16.7 mm (0.32 in)
8.1 mm (0.66 in)
T
1
Miniature Male Connector
Standard
6 Jacks
ANSI
MPJ-T-F-ROHS
$2.66
2486  In Stock
16.7 mm (0.66 in)
8.1 mm (0.32 in)
T
1
Miniature Female Connector
ROHS Compliant
6 Jacks
ANSI
MPJ-K-F
$2.66
2891  In Stock
16.7 mm (0.32 in)
8.1 mm (0.66 in)
K
1
Miniature Male Connector
Standard
6 Jacks
ANSI
MPJ-U-F
$2.66
421  In Stock
16.7 mm (0.32 in)
8.1 mm (0.66 in)
U
1
Miniature Male Connector
Standard
6 Jacks
ANSI
MPJ-J-F
$2.66
1036  In Stock
16.7 mm (0.32 in)
8.1 mm (0.66 in)
J
1
Miniature Male Connector
Standard
6 Jacks
ANSI
  Load More Items from this family (20) ...
thumbnail

Mounting hardware has been eliminated in the TPJ-style panel jacks by including the retaining spring clips as a part of the body design. A small tab and notch are provided to maintain straight, even rows without the need for precision machining.
Read More

quickShip This product has variations available for quick shipping.

TPJ
Product Number Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
TPJ-K-F
$5.27
361  In Stock
41.4 mm (1.63 in)
16.12 mm
K
1
3-Prong Female Connector
Standard
6 Jacks
ANSI
TPJ-U-F
$5.27
562  In Stock
41.4 mm (1.63 in)
16.12 mm
U
1
3-Prong Female Connector
Standard
6 Jacks
ANSI
TPJ-TI-F
$5.27
51  In Stock
41.4 mm (1.63 in)
16.12 mm
T
1
3-Prong Female Connector
Standard
6 Jacks
IEC
TPJ-K-F-ROHS
$5.27
73  In Stock
41.4 mm (1.63 in)
16.3 mm (0.64 in)
K
1
3-Prong Female Connector
ROHS Compliant
6 Jacks
ANSI
TPJ-R/S-F
$5.27
3  In Stock
41.4 mm (1.63 in)
16.3 mm (0.64 in)
R/S
1
3-Prong Female Connector
Standard
6 Jacks
ANSI
  Load More Items from this family (19) ...
thumbnail

OMEGA’s panel jacks contain two female, collet-type, spring-loaded connectors that will accept any standard male thermocouple connector. The panel jacks are molded of high-... Read More

quickShip This product has variations available for quick shipping.

JP
Product Number Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
JP-J-F
$5.27
171  In Stock
16.0 mm (0.63 in)
44.5 mm (1.75 in)
J
1
Standard Size Connector
Standard
Not Applicable
ANSI
JP-K-F
$5.27
158  In Stock
16.0 mm (0.63 in)
44.5 mm (1.75 in)
K
1
Standard Size Connector
Standard
Not Applicable
ANSI
JP-E-F
$5.27
19  In Stock
16.0 mm (0.63 in)
44.5 mm (1.75 in)
E
1
Standard Size Connector
Standard
Not Applicable
ANSI
JP-C-F-ROHS
$14.24
22  In Stock
16.0 mm (0.63 in)
44.5 mm (1.75 in)
C
1
Standard Size Connector
ROHS Compliant
Not Applicable
ANSI
JP-KI-F
$5.27
46  In Stock
30.4 mm (1.20 in)
16.1 mm (0.64 in)
K
1
Standard Size Connector
Standard
Not Applicable
IEC
  Load More Items from this family (13) ...
thumbnail



Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for other available models.
Read More

quickShip This product has variations available for quick shipping.

JPCB-TJPCB-RJPCB
Product Number Thermocouple Type Number of Connector Rows Connector Type Junction Box End Configuration Features Number of Junction Box Positions Color Code Standard
RJPCB-6-J-F
$43.84
2  In Stock
J
1
Female Connector
Standard
Standard
6-circuit round connector conduit box
ANSI
RJPCB-6-T-M
$45.94
5  In Stock
T
1
Male Connector
Standard
Standard
6-circuit round connector conduit box
ANSI
RJPCB-6-E-M
$45.94
3  In Stock
E
1
Male Connector
Not Applicable
Standard
6-position junction box
ANSI
RJPCB-6-K-F
$43.84
8  In Stock
K
1
Female Connector
Standard
Standard
6-circuit round connector conduit box
ANSI
TJPCB-4-J-F
$43.84
4  In Stock
J
1
Female Connector
Standard
Standard
4-circuit 3-prong conduit box
ANSI
  Load More Items from this family (145) ...
thumbnail

This product is no longer available. Please see Read More

UJP
Product Number Panel Thickness Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Number of Junction Box Positions Color Code Standard
UJP-1-4-BLANK
$22.49
4  In Stock
2.3 mm (0.09 in)
Not Applicable
Not Applicable
Not Applicable
1
No Connector
4 Jacks
Not Applicable
UJP-3-54-J
$286.16
8  In Stock
2.3 mm (0.09 in)
375 mm (14 3/4 in)
168 mm (6.63 in)
J
3
Standard and Miniature Connectors
54 Jacks
ANSI
UJP-2-36-T
$206.45
3  In Stock
2.3 mm (0.09 in)
260 mm (10 1/4 in)
111 mm (4.38 in)
T
2
Standard and Miniature Connectors
36 Jacks
ANSI
UJP-1-6-T
$58.26
3  In Stock
2.3 mm (0.09 in)
146 mm (5 3/4 in)
67 mm (2.63 in)
T
1
Standard and Miniature Connectors
6 Jacks
ANSI
UJP-2-12-T
$90.45
27  In Stock
2.3 mm (0.09 in)
260 mm (10 1/4 in)
111 mm (4.38 in)
T
2
Standard and Miniature Connectors
12 Jacks
ANSI
  Load More Items from this family (119) ...
thumbnail

OMEGA's 19SJP series are standard size thermocouple jacks mounted in 19 inch rack mount panels. The panels are made of clear anodized aluminum. They are available with 10 to 4... Read More

19SJP
Product Number Panel Cutout Shape Panel Length Panel Height Thermocouple Type Number of Connector Rows Connector Type Features Number of Junction Box Positions Color Code Standard
19SJP1-10-BLANK
$28.33
1  In Stock
No Panel Switch Cutout, No Meter Cutout
483 mm (19 in)
89 mm (3 1/2 in)
Not Applicable
1
No Connectors Included
Standard
10 Jacks
Not Applicable
19SJP4-40
$5.36
3  In Stock
No Panel Switch Cutout
483 mm (19 in)
222 mm (8 3/4 in)
Not Applicable
4
Standard Connector
Standard
40 Jacks
ANSI
19SJP1-10-J-ROHS
$76.22
2  In Stock
No Panel Switch Cutout, No Meter Cutout
483 mm (19 in)
89 mm (3 1/2 in)
J
1
Standard Connector
ROHS Compliant
10 Jacks
ANSI
19SJP3-30-K
$160.68
2  In Stock
No Panel Switch Cutout, No Meter Cutout
483 mm (19 in)
178 mm (7 in)
K
3
Standard Connector
Standard
30 Jacks
ANSI
19SJP3-30-K-OSW
$166.86
1  In Stock
Panel Switch Cutout, No Meter Cutout
483 mm (19 in)
178 mm (7 in)
K
3
Standard Connector
Standard
30 Jacks
ANSI
  Load More Items from this family (85) ...
en-US
en
Save Configuration
